- Panel Mesh welding machines, can made standard welded panel production in desired dimensions to be used, environmental and security system, industrial areas, military facilities.
- According to specifications and capacity, 90 kVA - 120 kVA high technology transformer, can used in panel mesh welding machines.

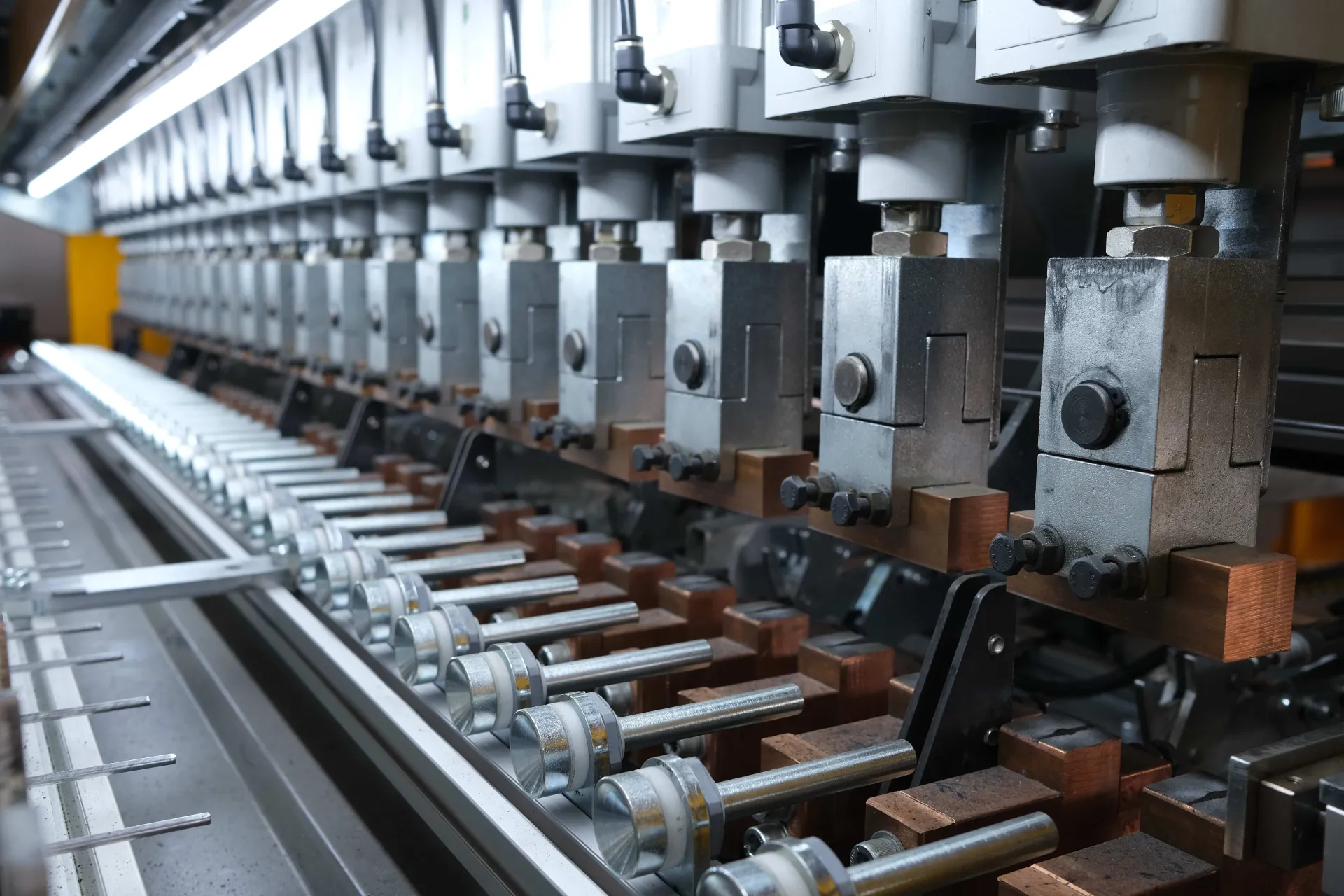

- It welds straightened and cut wires in desired wire thicknesses to each other.
- According to the customer's request, transformer power and quantity, automatic length wire mechanism, twisting press and stacking robot can be added to panel welding machines.
1 / 12
Panel Fence Spot (Welding) Machine
Eco Automatic Panel Fence Spot Welding Machine
Product CodeTMX - E.P.P.
Panel Mesh welding machines, can made standard welded panel production in desired dimensions to be used, environmental and security system, industrial areas, military facilities.
Brand
Telcimaks
Pricing for this product is prepared especially for you based on your request.
- Shipping across Türkiye and abroad
- Manufacturer warranty
- Installation, training and after-sales service
TMX - E.P.P.
Product Description
Technical Specifications
| Models | 200x250 | 250x250 | 300x250 |
|---|---|---|---|
| Panel Height | Min 1000 mm / Max 2500 mm | Min 1000 mm / Max 2500 mm | Min 1000 mm / Max 2500 mm |
| Panel Height | Min 1000 mm / Max 2000 mm | Min 1500 mm / Max 2500 mm | Min 1500 mm / Max 3000 mm |
| Wire Thickness | Min - 3 mm / Max - 5 mm | Min - 3 mm / Max - 5 mm | Min - 3 mm / Max - 5 mm |
| Eye Spaces | Min - 45 mm / Max - 100 mm | Min - 45 mm / Max - 100 mm | Min - 45 mm / Max - 100 mm |
| Eye Spaces | Min - 20 mm / Max - 300 mm | Min - 20 mm / Max - 300 mm | Min - 20 mm / Max - 300 mm |

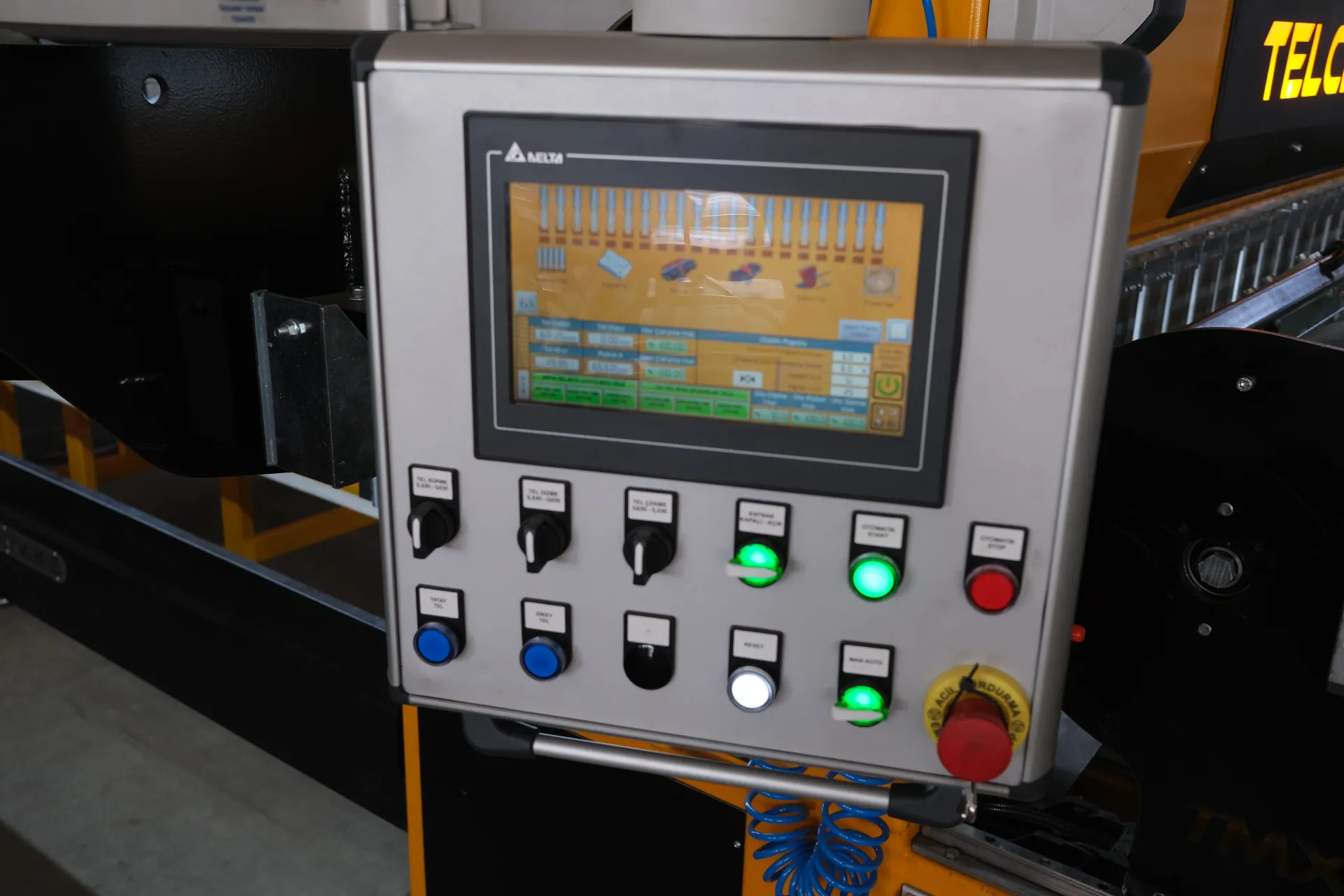

| Control System | PLC 10'' | PLC 10'' | PLC 10'' |
| Total Power | 4 x 120 kVA | 6 x 120 kVA | 6 x 120 kVA |
| Machine Voltage | 380 V | 380 V | 380 V |
| Machine Weight | 3000 Kg | 3750 Kg | 4500 Kg |
| Knitting Hardness | 500 - 800 N/m2 | 500 - 800 N/m2 | 500 - 800 N/m2 |
